Name: Fismart-A High Precision Automated Smart EC PH Sensor PWM Bypass Fertilizer Dosing System Spreader Fertilizer Machine Farming
Brand: Sichuan Aixiang Agricultural Technology Co., Ltd.
SKU: フィスマート-A
Price: 6,430.00 USD
Availability: InStock

家へ > 製品 > 潅漑の受精システム >

Fismart-A High Precision Automated Smart EC PH Sensor PWM Bypass Fertilizer Dosing System Spreader Fertilizer Machine Farming

起源の場所:

中国

ブランド名:

FARMNET

モデル番号:

フィスマート-A

連絡ください

要求引用

Fismart-A High Precision Automated Smart EC PH Sensor PWM Bypass Fertilizer Dosing System Spreader Fertilizer Machine Farming

プロダクト細部

アプリケーション:

肥料散布機

電力(w):

2.2KW

寸法(長さ*幅*高さ):

911*905*1438mm

電源:

380V AC 50Hz

インレットとアウトレット:

DN40

肥料機械ネットワーク化:

WIFI/WAN/4G

人間の機械インターフェース:

10インチ容量タッチスクリーン

EC/PHセンサー:

標準シングルチャンネル EC/PH

肥料の注入チャネル:

2 肥料 1 酸 (標準) 最大 4 チャンネル

支払及び船積みの言葉

最小注文数量

1個

価格

$6003-6857

パッケージの詳細

輸出梱包：1。スチール（バンドリングとパッケージング）2。機器、スペアパーツ（木製ケース、カートンパッケージ）3。PCシート、ガラス、フィルム、その他の独立したパッケージ

受渡し時間

25〜30日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

花の植わることのためのOEM ODMの農場の液体肥料の用水系統

最もよい価格を得なさい

AC 380V水および肥料の統合システムHydroponic肥料機械

最もよい価格を得なさい

110L自動肥やす機械統合の潅漑の受精システム

最もよい価格を得なさい

温室の潅漑肥料機械1KW自動肥料システム

最もよい価格を得なさい

連絡ください

+8613982313279

sales04@axgreenhouse.com

86--28-68745748

今接触

製品の説明

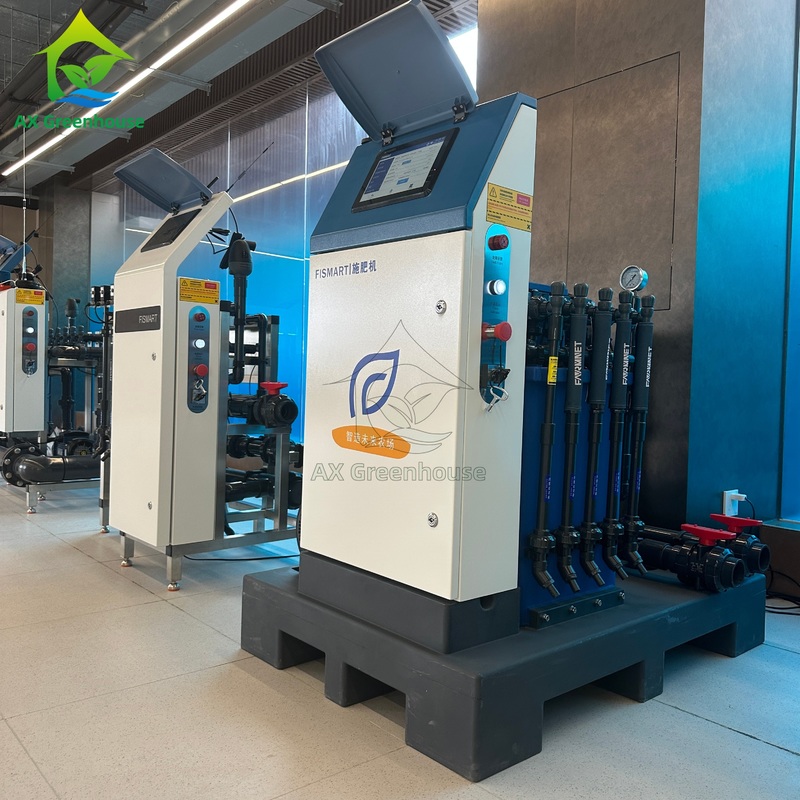

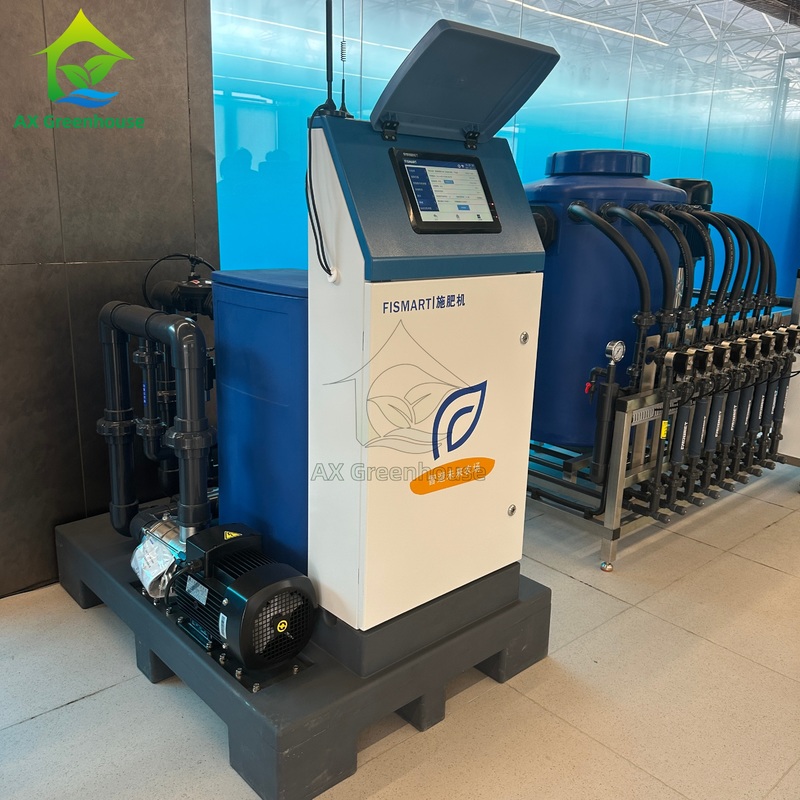

FISMART-A

FISMART-A is loved by a wide range of growers due to its ultra-high cost effectiveness.

A newly designed operating system allows every use to efficiently and safely complete irrigation and fertilization through the simplest and most intelligent operations.

Equipped with high-precision EC and PH sensors for accurate measurement.

By using OWM modulation technology,we can perfectly control the fertilizer absorption ratio and ensure precise fertilizer distribution,making us a trustworthy production partner.

Upgraded Protection, Strong And Durable As an agricultural production tool, strongness is extremely important. FISMART-A adopts 304 stainless steel material and robot welding technology, and the overall structural strength is extremely high, acid-resistant and corrosion-resistant. Intelligent Perception Of Precise Fertilizer Distribution, A Reliable Production Tool Equipped with high-precision EC and PH sensors for accurate measurement. Through PWM modulation technology, it perfectly controls the fertilizer absorption ratio and ensures accurate fertilizer distribution. It is a production partner worthy of complete trust. Flexible Response To Multiple Valve Control Modes Can be connected to three types of valve controllers: multi-line and bus wireless, and can be configured and combined at will to easily cope with valve control. Internet Of Things Support, Support Remote Control FISMART-A supports multiple ways of networking, WIFI/WAN/4G are all available. Remote control through mobile phone APP, even if you are far away, it is close at hand.

Size	911mm* 905mm* 1438mm
Weight	129Kg
Power Supply	380V AC 50Hz
Power	2.2KW
Inlet And Outlet	DN40
Type	Bypass

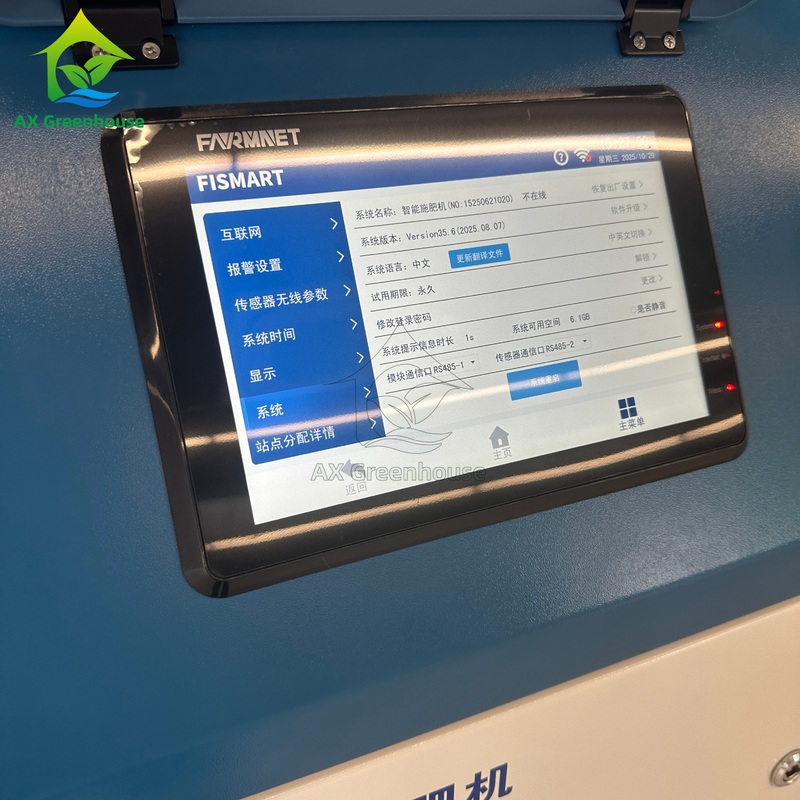

Human-machine Interface	10-inch capacitive touch screen
Pump (P/Q/H)	Lingxiao (2.2KW/8m3/48m)
EC Pre-control	No
EC/PH Sensor	Standard single-channel EC/PH
Inverter	No
Water Supply Pump	External
Flowmeter	Clip flowmeter
Stabilization Time	60s
Fertilizer Distribution Accuracy	±0.1ms/cm
Pipeline Pressure	＜6.0bar
Fertilizer Distribution Method	EC/PH automatic adjustment or proportional adjustment, each channel can set the fertilizer absorption ratio
